Model |

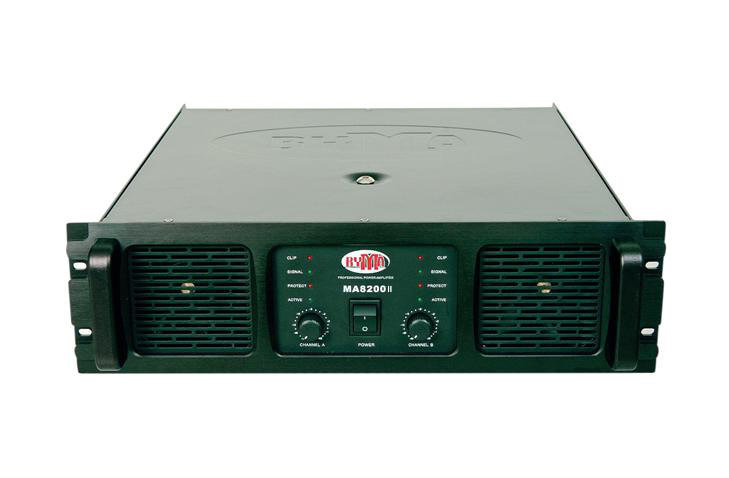

MA 8200II |
|
Stereo Power 16 Ω |
2 x 650w |
|
8 Ω |
2 x 1300w |
|
4 Ω |
2 x 2000w |
|
2 Ω |
2 x 2600w |
|
Bridge Mono Power 16 Ω |
2600w |
|
8 Ω |
4000w |
|
4Ω |
5200w |
|
Signal To Noise |
120dB |
|
Slew Rate |
80 V/usec |
|
Damping Factor |
620:1 |
|
Frequency Response |
+/-0.1dB, 20Hz + 20KHz |
|
THD |
≤0.01% |
|
IMD |
≤0.01%Rated Power@8 Ω |
|
Input Sensitivity |
0.775V, 1.0V, 1.55V |
|
Input Impedance |
15K/30K |
|
Input CMRR |
≤ -75dB |
|
Crosstalk |
≤ -70dB |
|
LED Indicator |
Signal, Protect, Active, Clip/Limiting |
|
Main Power Supply |
~230V 50/60Hz FUSE: T25A |
|
Supply Power |
4200w |
|
Weight |
41kg |
|
Dimension (W x D x H) |
483 x 510 x 133 mm |
